Logitech Expansion Microphones for GROUP

Logitech Expansion Microphones for GROUP – Detailed Feature Overview

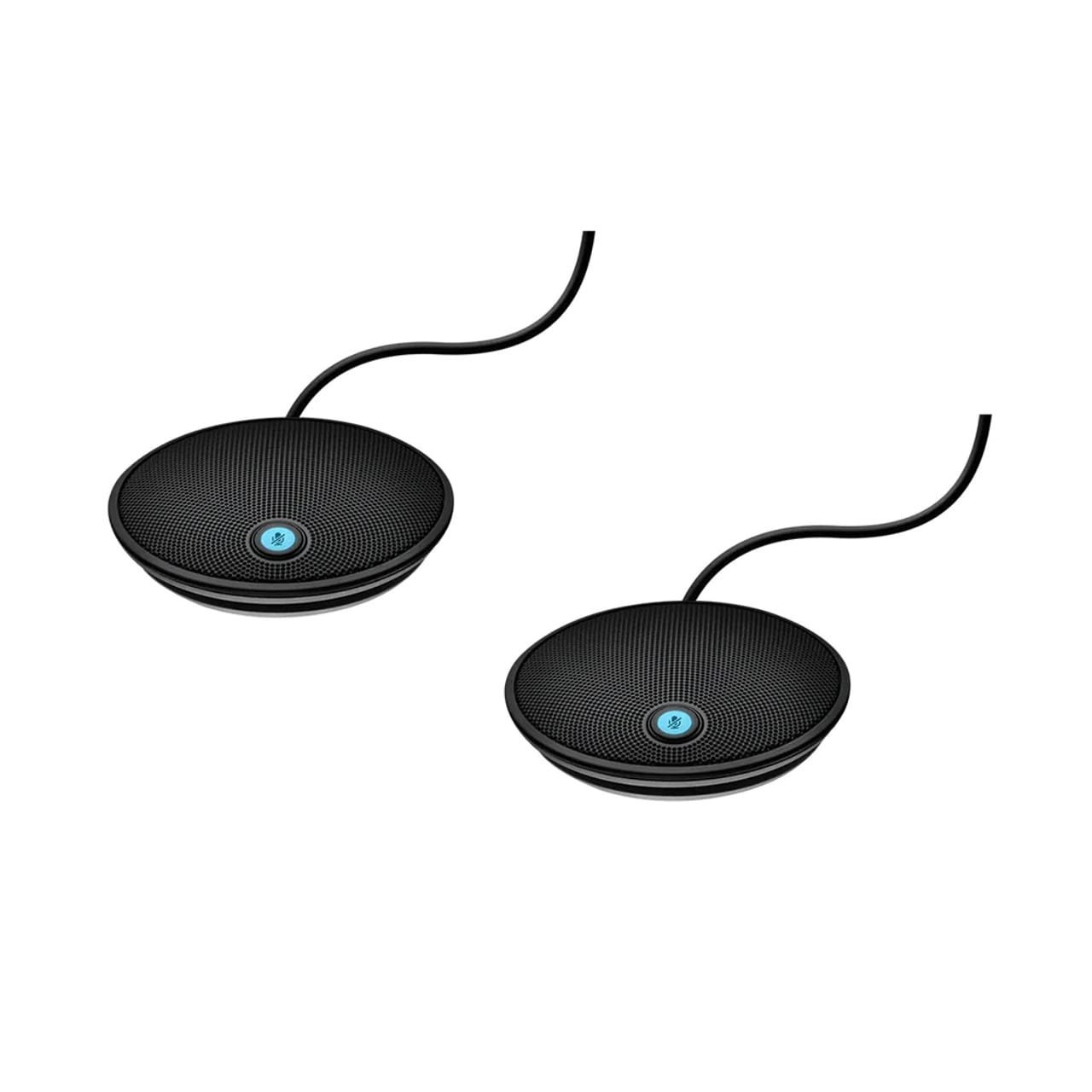

The Logitech Expansion Microphones for GROUP are purpose-built accessories designed to extend the audio pickup range of the Logitech GROUP ConferenceCam system and is available at Mobihub Electronics Kenya. They are ideal for medium to large meeting spaces where participants may be seated farther from the camera and speakerphone unit. These microphones enhance voice capture performance, improve meeting equity across seating arrangements, and ensure clear, intelligible audio for all participants.

Purpose and System Compatibility

• Designed for Logitech GROUP: These expansion microphones are engineered specifically for use with the Logitech GROUP ConferenceCam system, ensuring full compatibility and seamless integration with the base audio and video setup.

• Plug-and-Play Setup: The microphones connect directly to the GROUP speakerphone unit via a dedicated port. No additional configuration or power source is required, allowing for quick deployment in conference room environments.

Audio Performance and Range

• Extended Pickup Range: Each microphone significantly extends the effective pickup area of the Logitech GROUP system. When both expansion microphones are connected, the total audio coverage can accommodate up to 20 participants in a room, or up to 8.5 meters (28 feet) in diameter.

• Omnidirectional Microphones: Each unit captures audio in a 360-degree radius, ensuring that participants can speak naturally from any direction without the need to lean toward the microphone.

• Wideband Audio: The microphones support wideband audio (up to 16 kHz), contributing to natural voice reproduction with enhanced clarity and reduced distortion.

• Echo and Noise Cancellation Support: While the echo and noise reduction processing is handled by the GROUP speakerphone, the expansion microphones are fully optimized to transmit clean input with low latency and minimal signal degradation.

Design and Build Quality

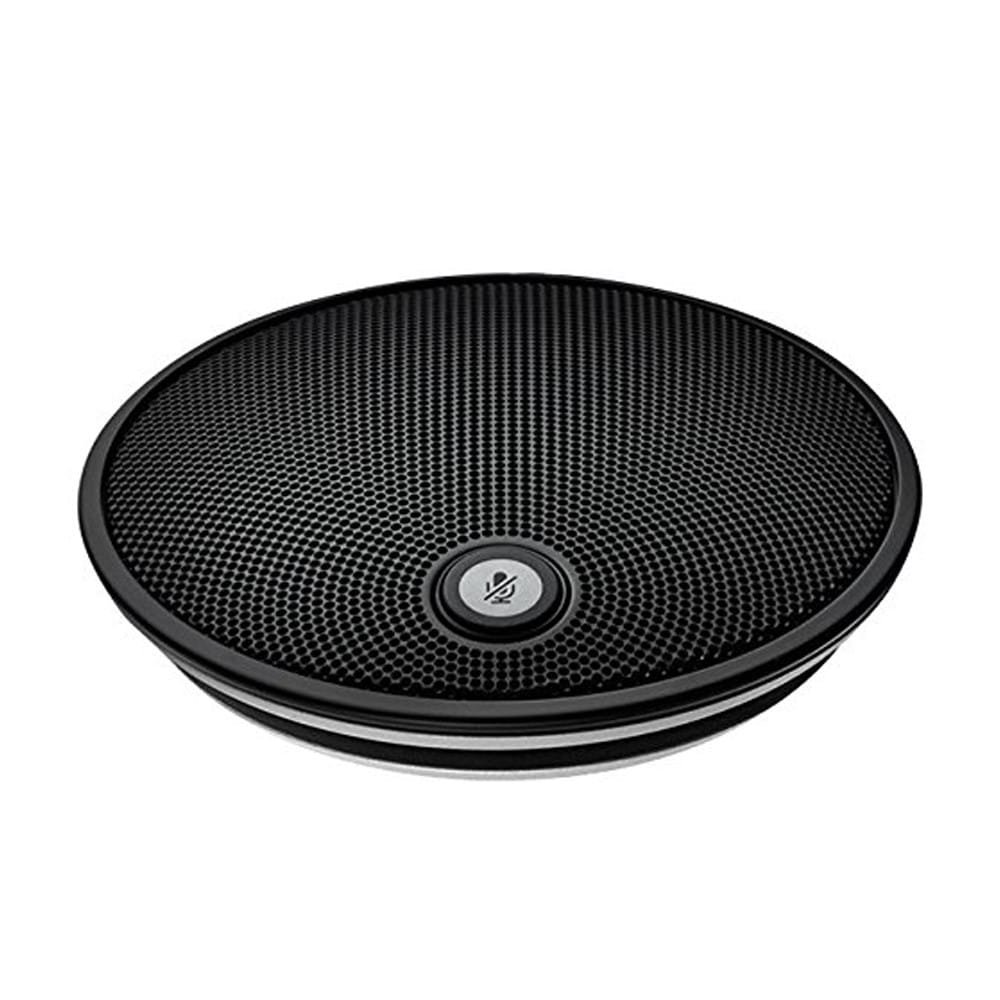

• Compact and Low-Profile: The microphones feature a compact, puck-style design that lies flat on the table and blends in with modern conference room aesthetics. Their unobtrusive presence makes them suitable for permanent room setups.

• Integrated Mute Buttons: Each microphone includes a capacitive touch mute button with a clear LED status indicator. This allows participants to mute/unmute directly from their position, increasing control and convenience.

• LED Indicators: A built-in LED ring provides real-time visual feedback on mute status, aligning with the controls on the GROUP speakerphone for consistent system behavior.

• Durability: Constructed with commercial-grade materials, the microphones are built to withstand frequent handling and long-term use in high-traffic meeting environments.

Cabling and Installation

• Cable Length: Each microphone includes a 2.4-meter (8-foot) cable, giving users flexibility in microphone placement to accommodate different room layouts and table configurations.

• Daisy-Chaining Not Required: The microphones connect directly to dedicated ports on the GROUP speakerphone via two available inputs, removing the need for intermediate hubs or daisy-chaining.

• Permanent or Portable Setup: Suitable for both fixed-room installations and mobile conferencing setups. The compact form factor and simple connectivity make them easy to deploy and reposition as needed.

Key Specifications

Integration and Use Cases

• Medium to Large Conference Rooms: Enables the Logitech GROUP system to support larger rooms by extending microphone coverage to the far ends of a table or meeting space.

• Equitable Participation: Ensures that all participants, regardless of seating position, can be heard clearly by remote attendees.

• Scalable Audio Coverage: Adds flexibility to room configurations without the need to relocate the base speakerphone.

Package Contents

• 2 × Expansion Microphones

• 2 × Cables (attached)

• Documentation (quick start guide)

Note: These microphones are not compatible with other Logitech video conferencing products such as Rally, MeetUp, or BCC950.

Advantages

• Extends audio coverage for larger rooms

• Plug-and-play simplicity with no software or drivers required

• Built-in mute controls increase participant convenience

• Omnidirectional capture ensures even voice pickup from all directions

• LED feedback improves user interaction and reduces mute errors

Limitations

• Only compatible with the Logitech GROUP system

• Not suitable for integration with third-party audio systems

• Does not support daisy-chaining or wireless connectivity
